Bolted Glass Fused to Steel Industrial Water Tanks For Wastewater Treatment Plant
These industrial water tanks are used across a range of industries including chemical and food, machine and system engineering and liquid foods. Popular uses for these tanks include liquid feeding systems, water dowsing systems and treating waste and recycled water. Sizes range from 20m³ to 25,000m³.

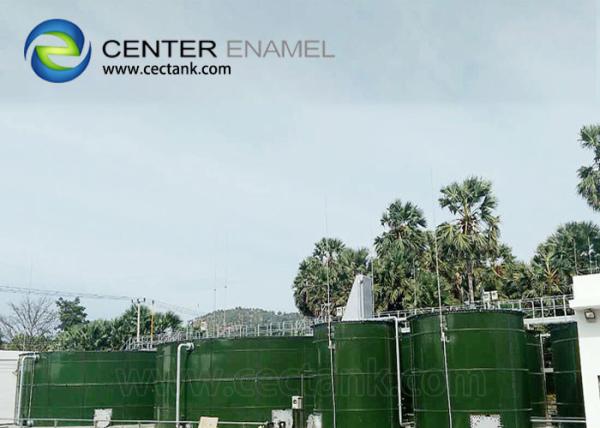

Bolted glass fused to steel industrial water tanks with over 30 years lifespan is called glass fused steel tank,which consists of Glass-Fused-to-Steel, special sealant, self-locking bolts. The glass fused steel tank is bolted type. Factory fabricated steel panels are bolted together by high-grade bolts and sealed by silicone sealant. The glass fused steel tank is gas and liquid impermeable. When making the installation, it is usually assembled from top to bottom, which the top rings is firstly connected and then next ring... Till the bottom ring. Lifting system like jacks or steel poles is used to lift the tanks which give access to workers to assembly the next rings. The glass-lined steel sludge holding tanks are widely used in the wastewater treatment plant.
Bolted Glass Fused to Steel Industrial Water Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds |
Bolted Glass Fused to Steel Industrial Water Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Glass Fused to Steel Industrial Water Tanks Project References
